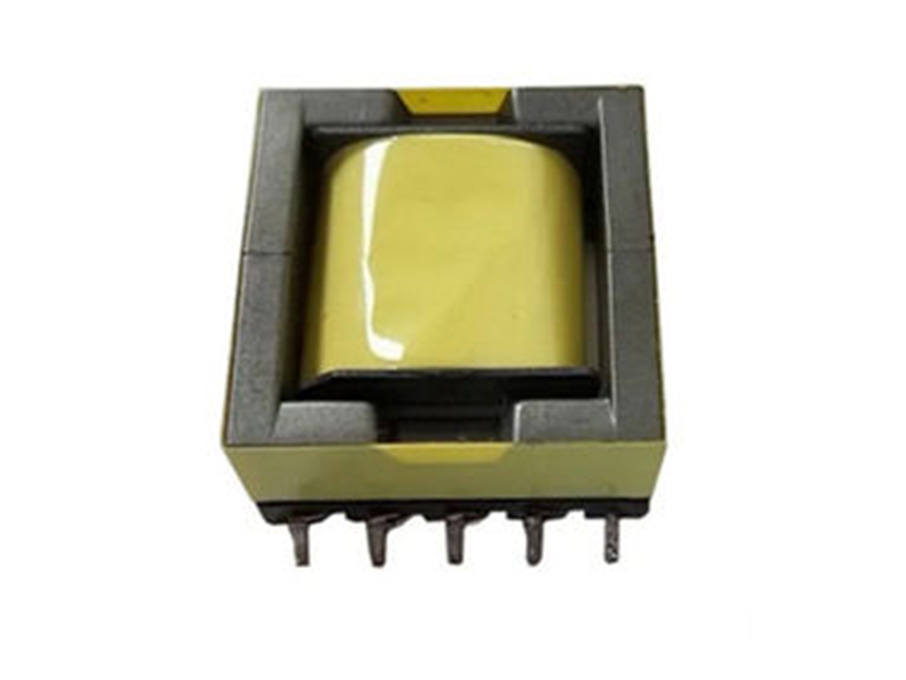

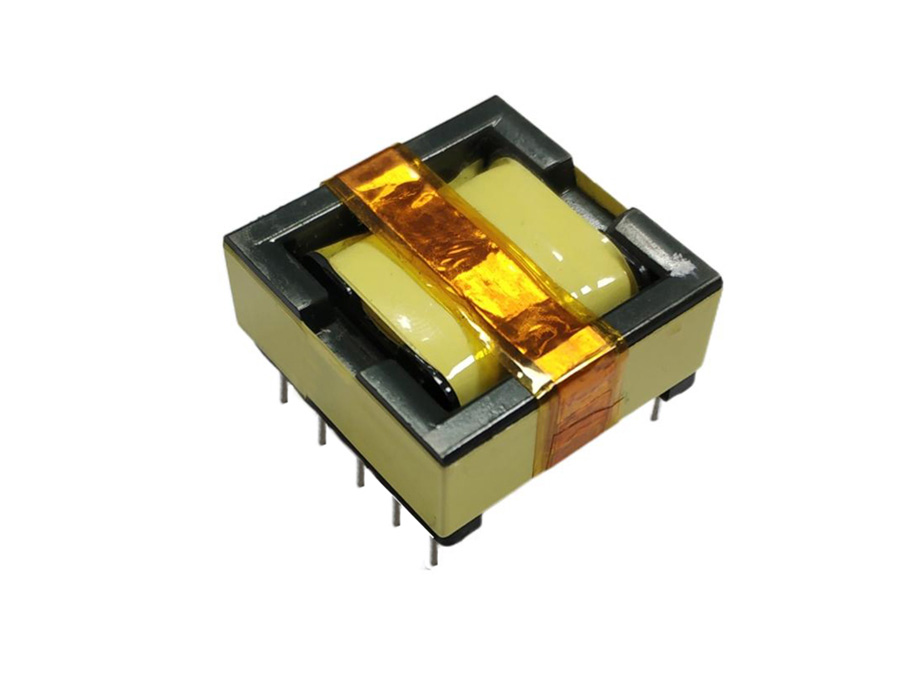

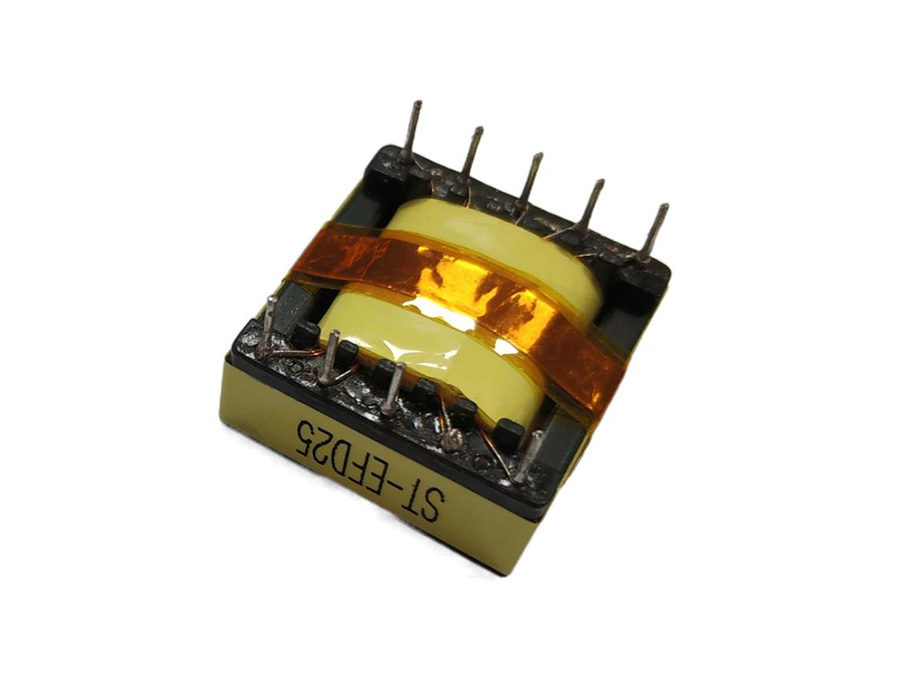

EFD25 Transformer
1. Working frequence: 10kHz-500KHz
2. Output power: 15 to 50 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%
PRODUCT DESCRIPTION

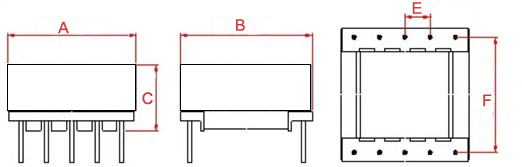

EFD25 TYPE 1

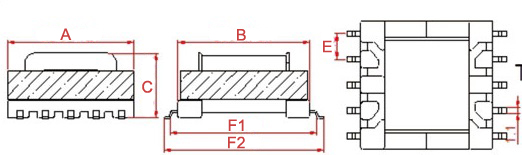

EFD25 TYPE 2
| Type | Structuretype | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin（mm） | Note | |||
| A | B | C | Pin | E | F1/F2 | ||||
| EFD25-01 | Horizontal | 26.0 | 27.0 | 14.0 | 5+5 | 5.0 | 22.5 | Φ0.8 | TYPE 1 |
| EFD25-02 | Horizontal | 26.0 | 26.5 | 13.5 | 5+5 | 5.0 | 28.9/31.5 | SMD1.1 | TYPE 2 |
