EFD30 Transformer
1. Working frequence: 10kHz-500KHz
2. Output power: 20 to 65 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%
PRODUCT DESCRIPTION
EFD30 TYPE

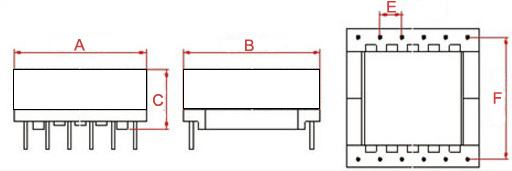

| Type | Structuretype | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin（mm） | Note | |||
| A | B | C | Pin | E | F | ||||
| EFD30-01 | Horizontal | 31.5 | 32.0 | 14.5 | 6+6 | 5.0 | 27.5 | Φ0.8 | TYPE 1 |
