Encapsulated Transformer
Encapsulated transformers, potential transformers, flyback transformers or any one of a large number of specialized transformers in use today all perform the same basic function: to lower the voltage of a given electrical circuit.
PRODUCT DESCRIPTION
Encapsulated Power Transformers
Encapsulated (Potted) power Transformers (also referred to as Epoxy Resin Encapsulated) are designed for applications where the environmental conditions would not permit a general purpose ventilated dry type transformer. The entire transformer core & coil is encased in a silica sand / polyurethane mixture which protects the windings from any airborne contaminants and moisture.
Encapsulated units are covered in a thicker coating of insulation than typical. Often the coils are completely encased in epoxy or an epoxy and aggregate mixture. Sometimes they are referred to as “potted” or “cast coil”.The encapsulated design is especially suited for installations in harsh environments where dust, lint, moisture and corrosive contaminants are present. Typical applications include: pulp and paper plants; steel mills; food processing plants; breweries; mines; marine and shipboard installations.
1. Different range of frequency from 10kHz to 500kHz
2. Power: 0.35VA -40VA
3.Encapsulated with electrical grade resin
4.Cores of high quality electrical steel
Features of Encapsulated Power Transformers
1. Encapsulated Power Transformerss are specifically excluded from the scope of U.S. DOE energy efficiency requirements
2. Encapsulated Power Transformerss are available in aluminum or copper windings
3. Standard 115°C temperature rise; 80°C optional. Insulation class 180°C
4. Optional low-sound 3dB and 5dB below NEMA ST-20 standard
5. Available in 60 and 50 Hz
6. Standard NEMA 3R enclosures
7. Cores are grounded with a copper lead
Welcome to Contact us, if you are interested in our products.
Benefits of Encapsulated Power Transformers
1. Mixture of silica sand resin forming a solid mass completely encloses and protects the core and coil, also significantly reduces audible noise.
2. Windings utilize Class 220°C Insulating rated for 150°C Rise, but designed to operate at 115°C maximum.
3. The transformer's core is solidly grounded.
4. Enclosure constructed from heavy gauge steel, coated with ASA#61 grey powder paint
5. Suitable for NEMA/CSA Type 3R and Type 4 Enclosure applications for both indoor and outdoor
6. Spacious wiring compartment, cool and easily accessible (bottom or front access may depend on size)
Applications of Encapsulated Power Transformers
1. For all general loads, indoors or out, including lighting, industrial and commercial applications
2. Units may be banked for 3-Phase operations
3. Corrosive Environments: Petro-Chemical, steel, pulp and paper industries
4. Damp conditions: Mines, pump-houses underground or rooftop service areas
5. Industrial applications: processes with high degree of airborne dust or conductive particles
Sitong is a professional Encapsulated Power Transformers Manufacturer which we have kept supplying a variety of electronic parts to many foreign importers in United States, South Korea, Russia and others. Welcome to choose Encapsulated Power Transformers when you free.Besides,we can be customized according to customer requirements.
Welcome to choose our Encapsulated Power Transformers!
As a leading supplier of encapsulated power transformers, Tianjin Sitong Electronic Co., Ltd. offers a wide range of high-quality and reliable transformers that are designed to meet the unique needs of our customers. Our encapsulated power transformers are known for their superior performance, durability, and safety, making them an excellent choice for a variety of industrial applications.
Our encapsulated power transformers are manufactured using advanced technologies and high-quality materials to ensure optimal performance and longevity. We use high-grade copper wire for our transformer windings, which helps to reduce resistance and improve energy efficiency.Additionally, our transformers are encapsulated in a high-quality epoxy resin that provides excellent protection against moisture, dust, and other environmental factors, making them ideal for use in harsh operating conditions.
At Sitong, we offer a wide range of encapsulated power transformers to meet the specific needs of our customers. Our transformers come in a variety of sizes and power ratings, from small, low-voltage transformers to large, high-voltage transformers. We also offer custom designs to meet the unique needs of our customers, including specific voltage and frequency requirements.
Our encapsulated power transformers are rigorously tested to ensure they meet the highest standards of quality and safety. We are proud to be certified to ISO9001:2015 quality and safety management system standards, and all of our products are CE and UL certified. Additionally, our materials have passed RoHS testing, ensuring that our products are environmentally friendly and safe for use in a variety of applications.
At Tianjin Sitong Electronic Co., Ltd., we are committed to providing our customers with the highest quality encapsulated power transformers and the best possible service. Our state-of-the-art workshop features automatic winding machines, automatic common mode inductor winding machines, and automatic epoxy potting machines, ensuring that our products are manufactured to the highest standards of quality and reliability.
Choose Tianjin Sitong Electronic Co., Ltd. as your encapsulated power transformers supplier and experience the difference that high-quality, reliable transformers can make in your industrial applications.

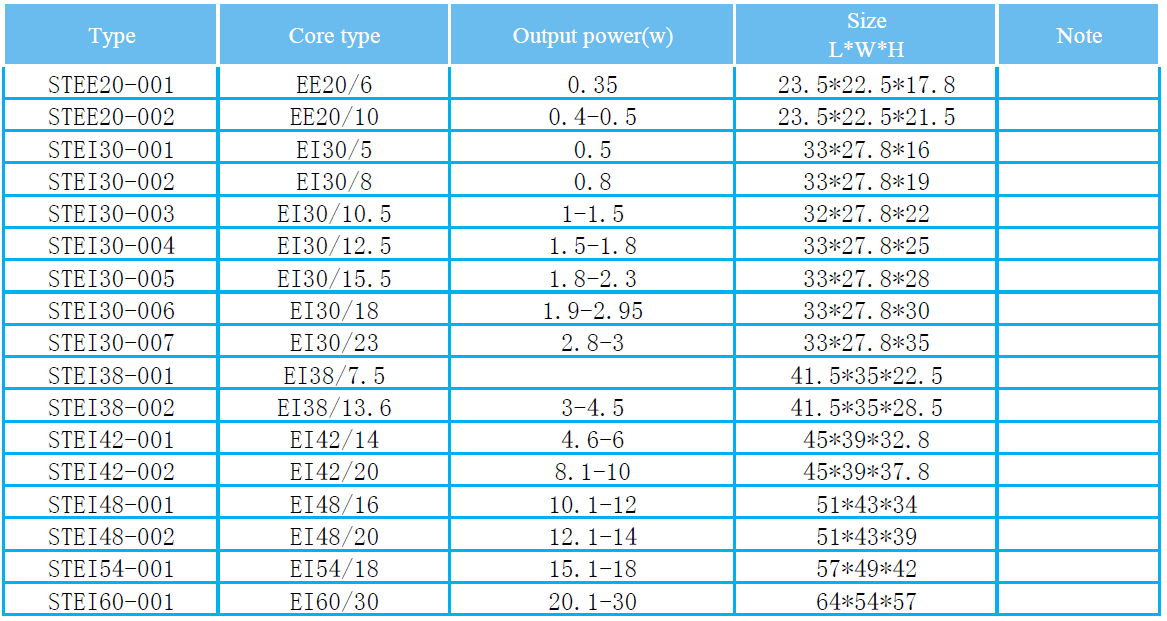

Specifications and parameters can be customized according to customer designed requirements.

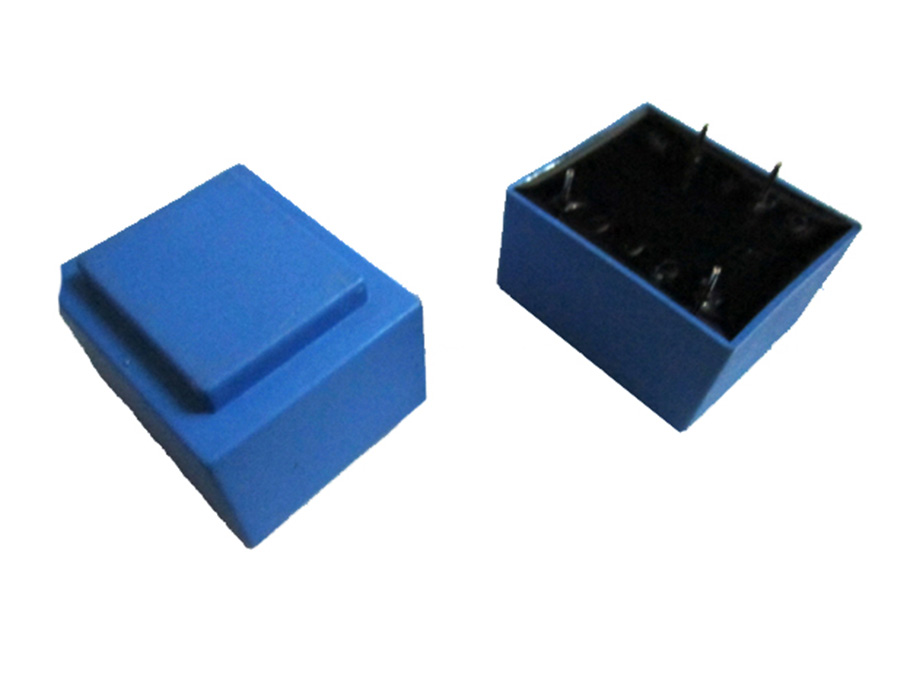

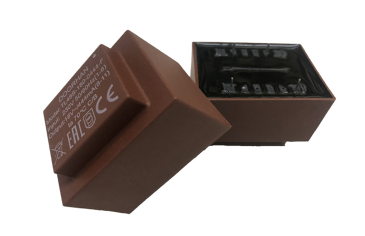

The encapsulate power transformer is manufactured with high-quality EI type silicon steel sheets. It has the characteristics of low no-load loss, high power, high efficiency and low temperature rise. After epoxy potting, it has the functions of impact resistance, insulation, fixation and noise reduction. It widedly used in temperature control, electric meters, electric meters, household appliances and other equipment.
