EPC17 Transformer
EPC17 High Frequency Transformer Performance
1. Working frequence: 10kHz-500KHz
2. Output power: 5 to 18 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%
PRODUCT DESCRIPTION

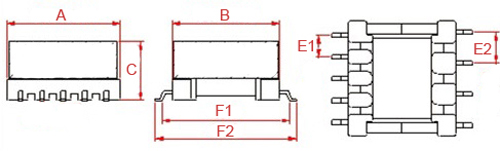

EPC17 TYPE 1

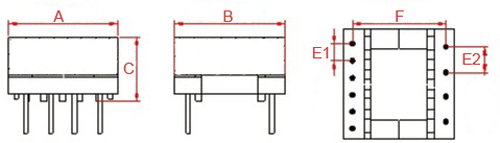

EPC17 TYPE 2
| Type | Structure | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin（mm） | Note | |||
| A | B | C | Pin | E1/E2 | F1/F2 | ||||
| EPC17-01 | Horizontal | 18.5 | 19.0 | 13.0 | 4+6 | 2.5/3.7 | 15.5 | Φ0.6 | TYPE 1 |
| EPC17-02 | Horizontal | 19.5 | 18.5 | 10.5 | 4+5 | 3.5/5.0 | 20.8/23.0 | SMD0.7 | TYPE 2 |
Specifications and parameters can be customized according to customer designed requirements.

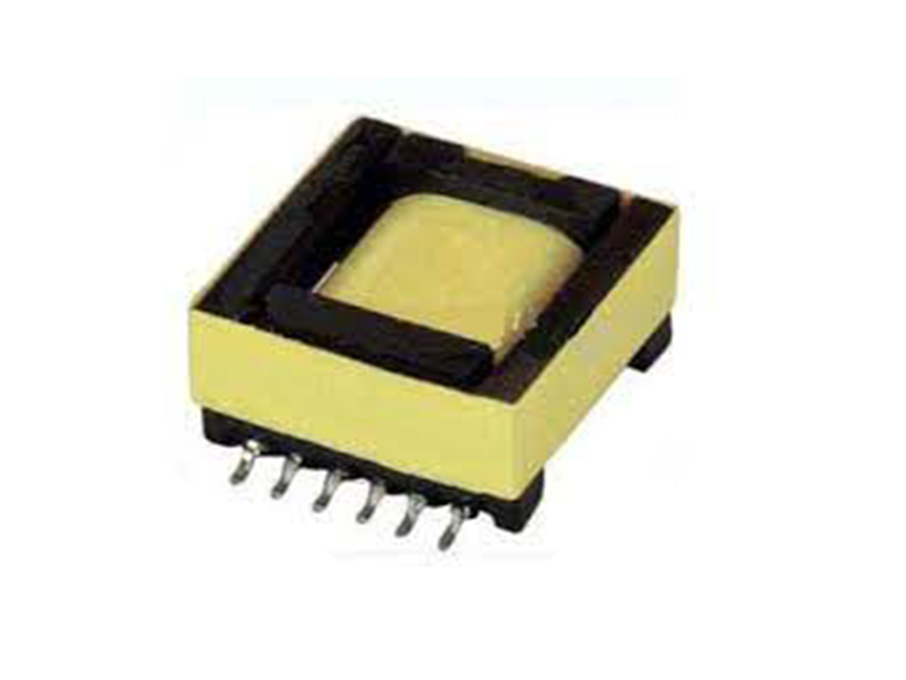

EPC17 High Frequency Transformer Product Description
EPC17 high frequency transformer performance
1.working frequency：10kHz-500KHz
2.output power：5 to 18 W
3.operating temperature：-40℃ to +125℃
4.storage temperature：-25℃ to +85℃
5.Store humidity：30 to 95%
EPC17 High frequency transformer is a kind of electronic transformer which work frequency exceed 10 kHz, it widely used in switch power supply, inverter power supply, power meters, Telecom, inverter welding machine and photovoltaic, etc.
EPC17 High frequency transformer as the most important parts in switch power supply, there are so many topological structures, such as forward full/half Bridge structures.
Sitong Electronic not only could manufacture forward half/full bridge transformers, also have other circuit transformers, such as flyback transformers, converter transformers, inverter transformers, push-pull transformers, LLC transformers, etc.
Advantage:
1. Our materials resource from the suppliers in our UL lists (UL E364966). They have passed RoHS certificate. If you have pointed supplier, it is also available. We will inform in advance if there are any changes about the materials or suppliers.
2. Sitong Electronic has passed ISO9001:2015, our procedures according to the ISO requirements strictly. Our SOP is same as the customer’s requirements, and the batch goods are same as the delivered samples.
3. The goods will be inspected 2 times before delivery to ensure the best quality: All the products will through testing before varnish, and will be 100% tested before package. Twice testing including: turns, inductance, Hi-pot, leakage inductance, DCR, visual inspection, etc.
EPC17 High Frequency Transformer Feature
The characteristics of EPC17 high frequency transformer is small size, winding is convenient, the price is moderate，high reliability.
1.Supply high voltage and withstand voltage
2.Operation frequency range from 40 to 80 KHz
3.Deliver Output Power from 1.5 to 25 watts
4.Slim or low profile Type easily built in your design
5.Available in through-hole and SMT recess or gull wing type
6.Operate in Royer , direct IC drive and other topologies
APPLICATIONS:
Applicable to light up cold cathodes fluorescent lamp of display.Such as DSC, PDA, Scanner, Car Navigation, Notebook PC, LCD monitor and LCD TV.
EPC17 High Frequency Transformer Use
EPC17 high frequency transformer is usually apply to DC-DC transformers,driver transformer，digital camera ,common-mode inductor and switch power supply, etc.
Sitong Electronic is a professional Transformers Manufacturer, providing EPC17 high frequency transformer with unique and stylish design. With complexity of modern power supply design, most of the transformer is unique in each power supply, we offer customer design and engineering support for our customers. Please contact us for more details.Sitong can provide hi gh-frequency transformers of various specifications, and can be customized according to customer requirements.
