ER28 Isolated Electronic Transformer
1. Working frequence: 10kHz-500KHz
2. Output power: 20 to 100 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%
PRODUCT DESCRIPTION

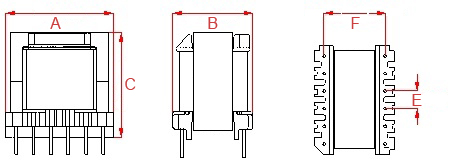

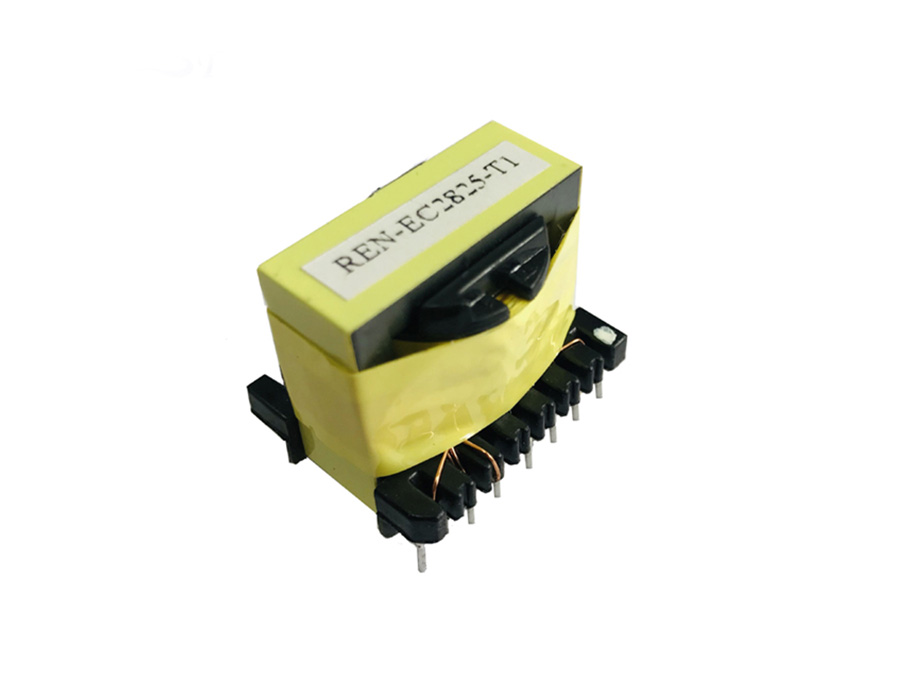

ER28 TYPE 1

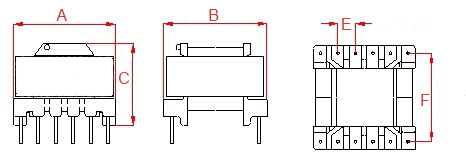

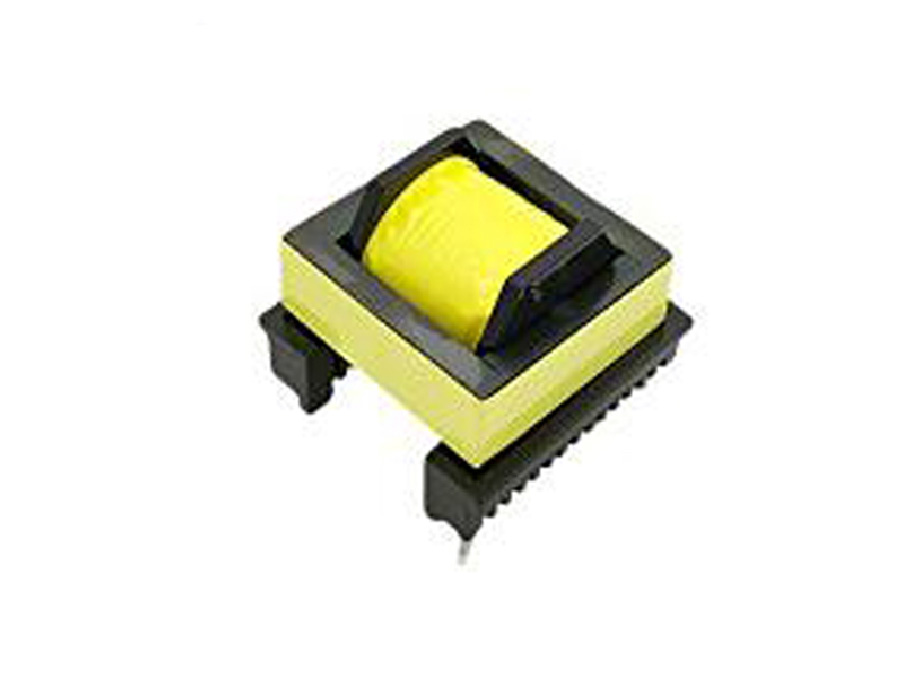

ER28 TYPE 2
| Type | Structuretype | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin（mm） | Note | |||
| A | B | C | Pin | E | F | ||||
| EC28/ER28-01 | Horizontal | 31.0 | 31.5 | 24.5 | 6+6 | 5.0 | 25.0 | Φ0.8 | TYPE 1 |
| EC28/ER28-02 | Vertical | 32.0 | 24.0 | 31.0 | 6+6 | 5.0 | 17.3 | Φ0.8 | TYPE 2 |
