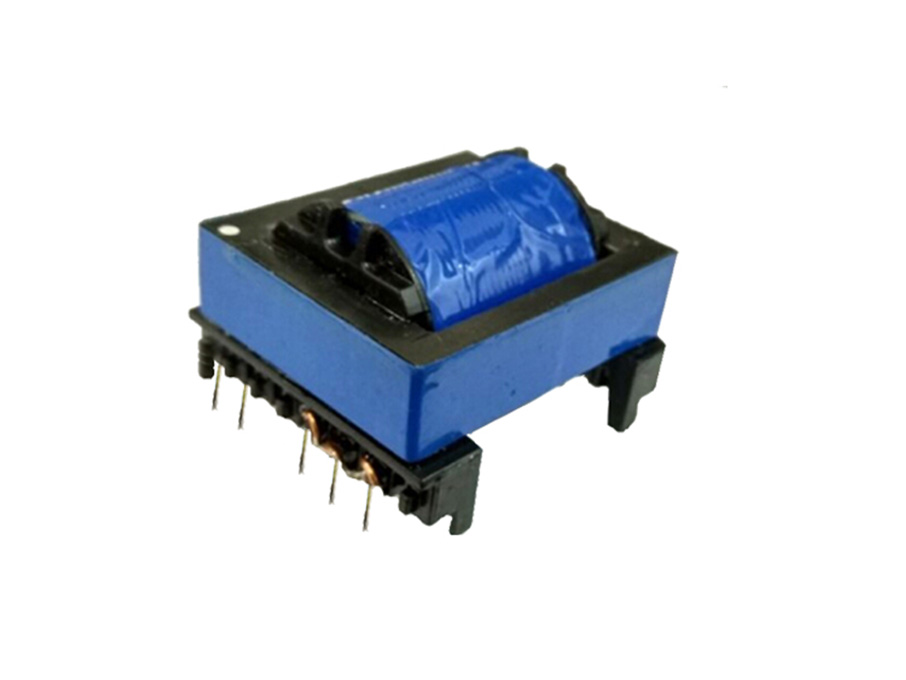

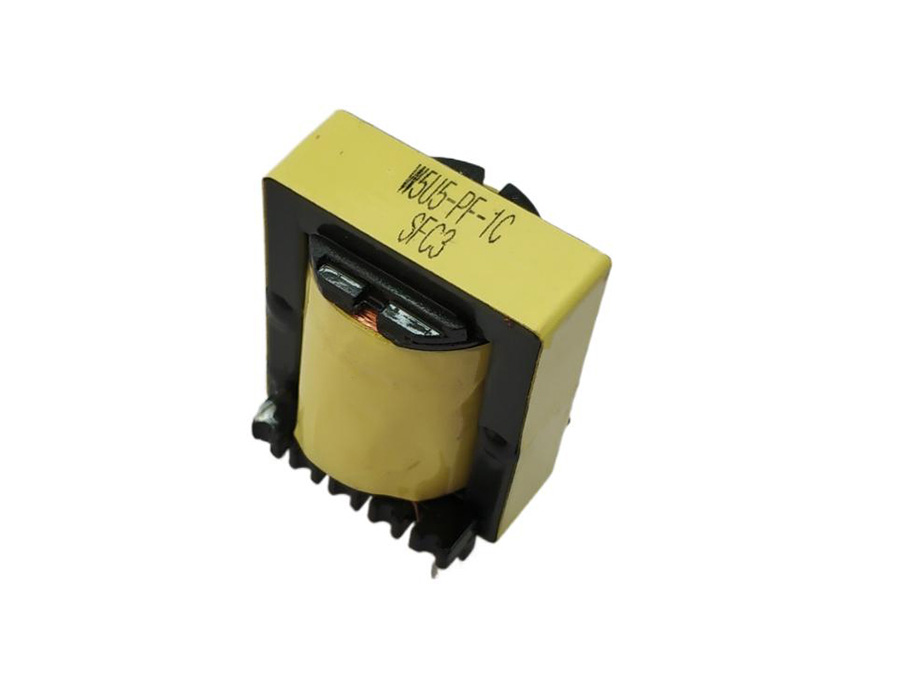

ER42 Isolated Electronic Transformer
1. Working frequence: 40kHz-500KHz
2. Output power: 150 to 1000 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%
PRODUCT DESCRIPTION

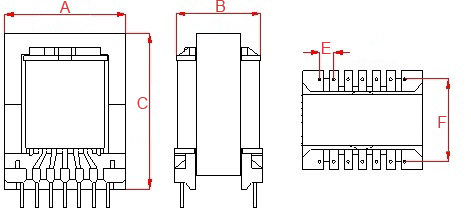

ER42 TYPE 1

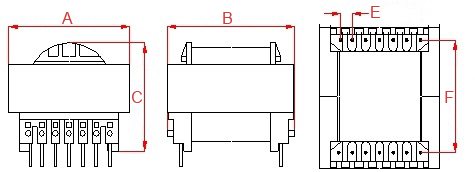

ER42 TYPE 2
| Type | Structuretype | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin （mm） | Note | |||
| A | B | C | Pin | E | F | ||||
| EC42/ER42-01 | Vertical | 44.0 | 31.0 | 50.0 | 7+7 | 5.0 | 24.8 | Φ1.0 | TYPE 1 |
| EC42/ER42-02 | Vertical | 44.0 | 31.0 | 50.0 | 8+8 | 5.0 | 25.0 | Φ1.0 | TYPE 1 |
| EC42/ER42-03 | Vertical | 46.0 | 38.0 | 41.0 | 9+9 | 5.0 | 30.0 | Φ1.0 | TYPE 1 |
| EC42/ER42-04 | Vertical | 56.0 | 33.0 | 50.0 | 11+11 | 5.0 | 25.0 | Φ1.0 | TYPE 1 |
| EC42/ER42-05 | Horizontal | 44.0 | 46.0 | 35.0 | 7+7 | 5.0 | 35.0 | Φ1.0 | TYPE 2 |
| EC42/ER42-06 | Horizontal | 44.0 | 48.0 | 33.0 | 8+8 | 5.0 | 40.0 | Φ1.0 | TYPE 2 |
| EC42/ER42-07 | Horizontal | 53.0 | 53.0 | 37.0 | 9+9 | 5.0 | 40.0 | Φ1.0 | TYPE 2 |
