ER49 Isolated Electronic Transformer
1. Working frequence: 40kHz-500KHz
2. Output power: 150 to 1500 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%
PRODUCT DESCRIPTION

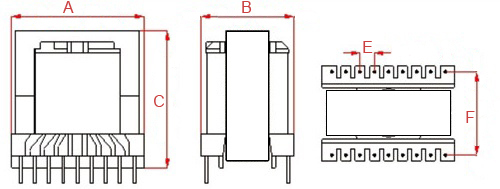

ER49 TYPE 1
| Type | Structuretype | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin （mm） | Note | |||
| A | B | C | Pin | E | F | ||||
| EC49/ER49-01 | Vertical | 55.0 | 36.0 | 50.0 | 9+9 | 5.0 | 27.5 | Φ1.0 | TYPE 1 |
