ETD44 High Frequency Transformer
Specification
1. Working frequency: 40kHz -500kHz
2. Output power: 20 to 800W
3. Working temperature: -40℃ to +125℃
4. Storge temperature: -25℃ to +85℃
5. Storge humidity: 30 to 95%
PRODUCT DESCRIPTION

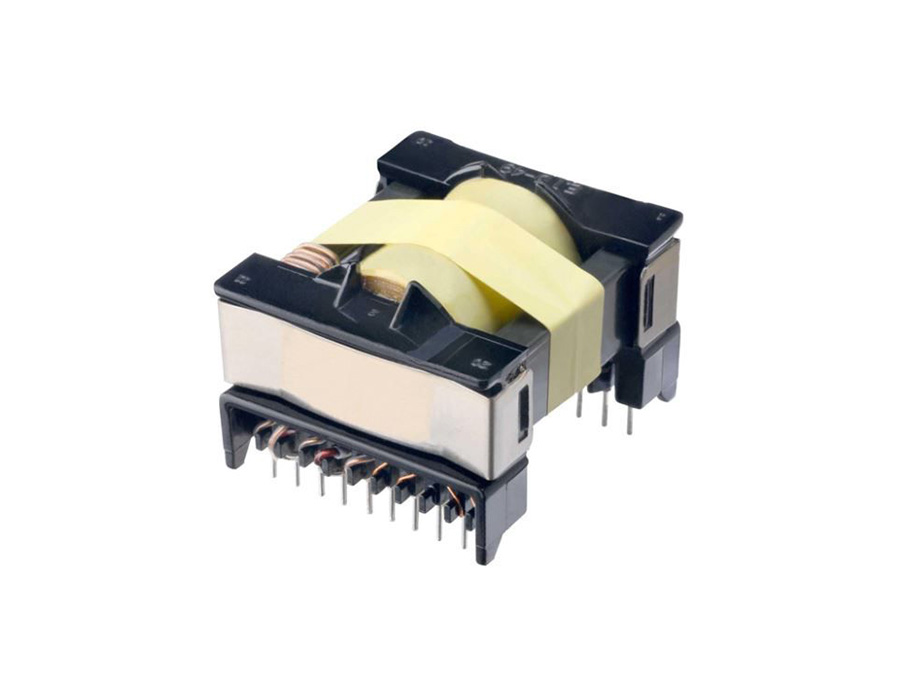

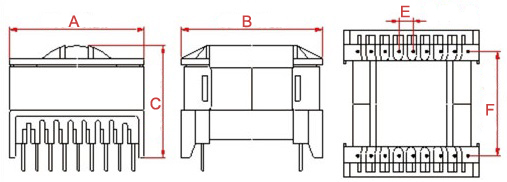

ETD44 TYPE 1

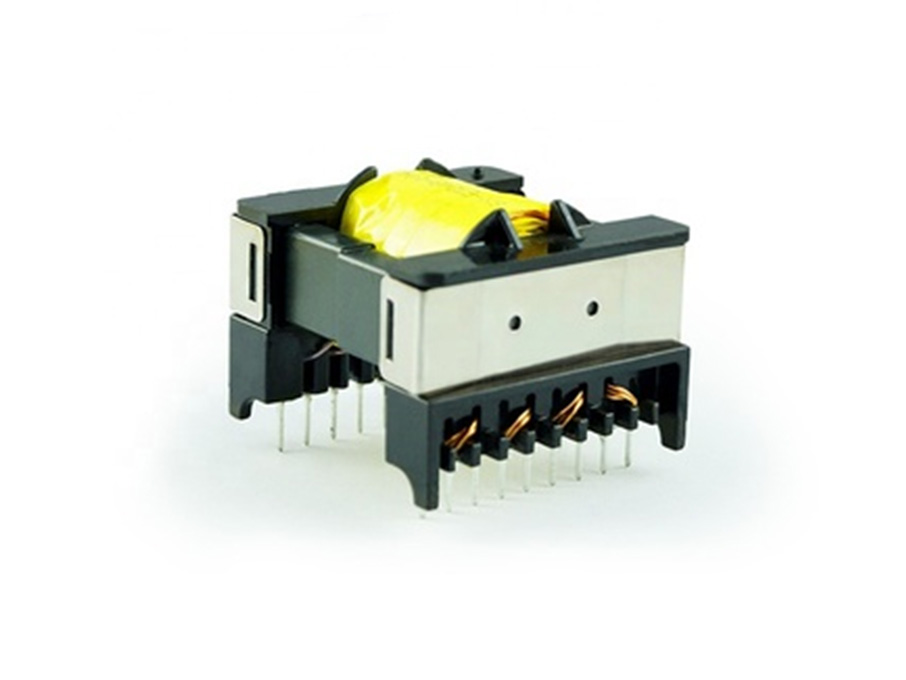

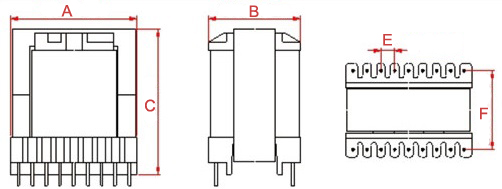

ETD44 TYPE 2
| Type | Structure | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin（mm） | Note | |||
| A | B | C | Pin | E | F | ||||
| ETD44-01 | Vertical | 47.0 | 34.0 | 52.0 | 9+9 | 5.0 | 27.5 | Φ1.0 | TYPE 1 |
| ETD44-02 | Horizontal | 50.0 | 52.5 | 40.5 | 9+9 | 5.0 | 36.5 | Φ1.0 | TYPE 2 |
