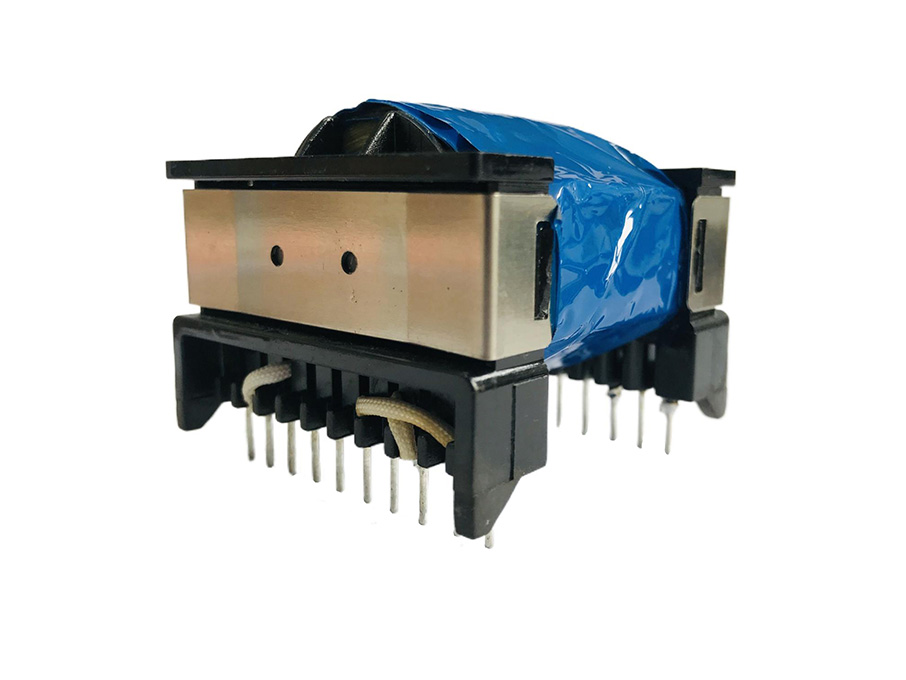

ETD59 High Frequency Transformer
Specification
1. Working frequency: 50kHz -500kHz
2. Output power: 400 to 2000W
3. Working temperature: -40℃ to +125℃
4. Storge temperature: -25℃ to +85℃
5. Storge humidity: 30 to 95%
PRODUCT DESCRIPTION

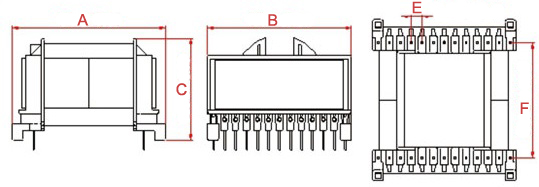

| Type | Structure | Dimension（mm） | Pin Row（mm） | Row Pitch(mm) | OD Pin（mm） | Note | |||
| A | B | C | Pin | E | F | ||||
| ETD59-01 | Horizontal | 72.5 | 68.0 | 46.0 | 13+13 | 5.08 | 50.8 | Φ0.8 | TYPE 1 |
