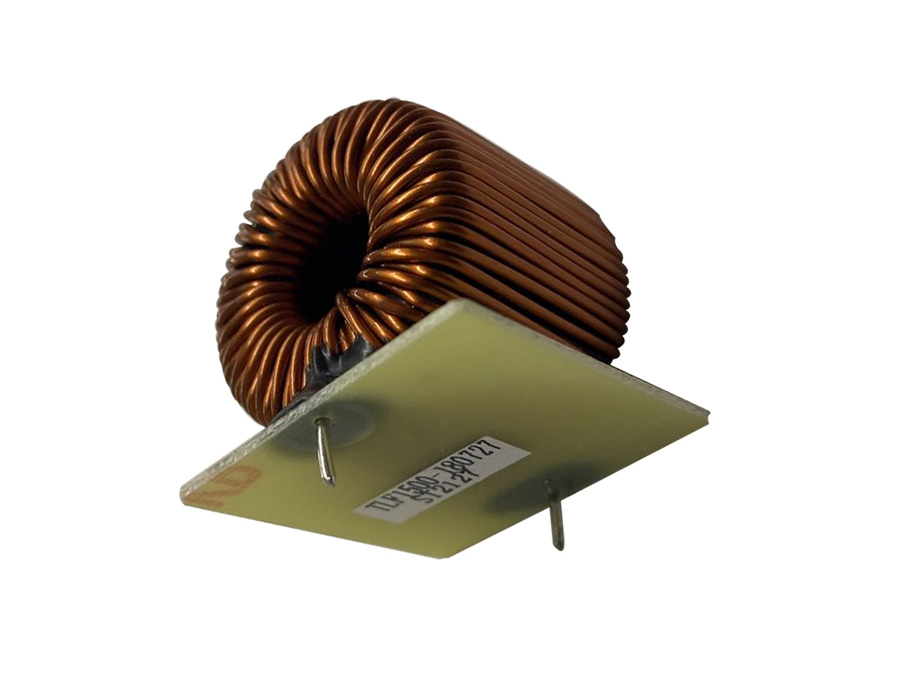

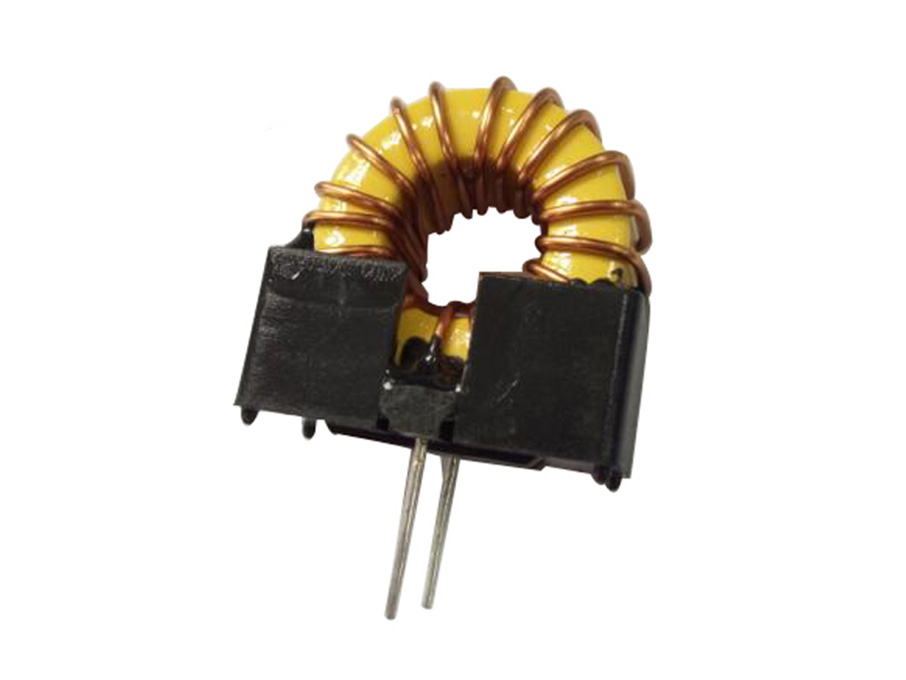

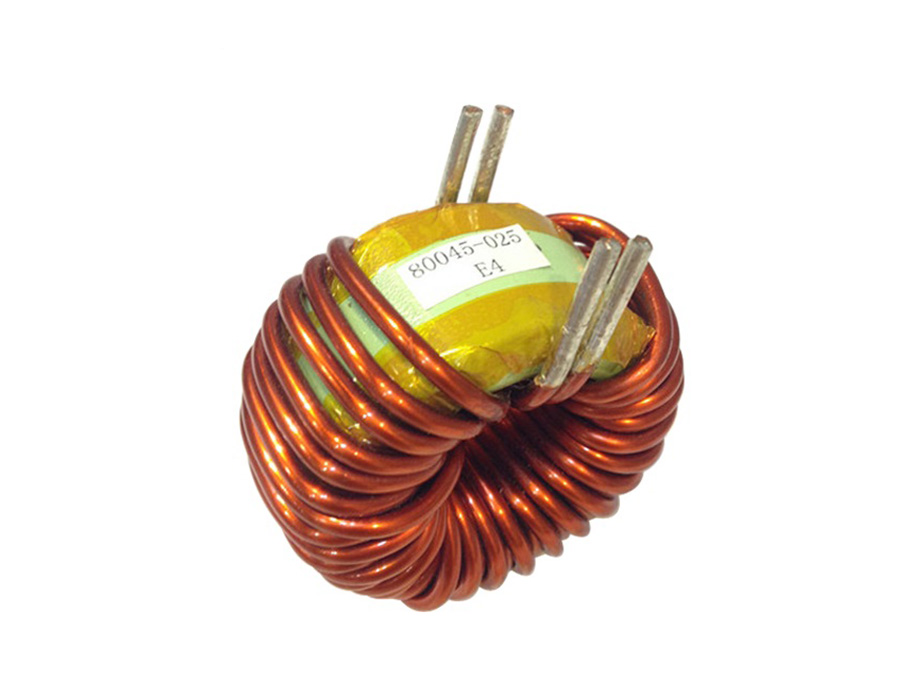

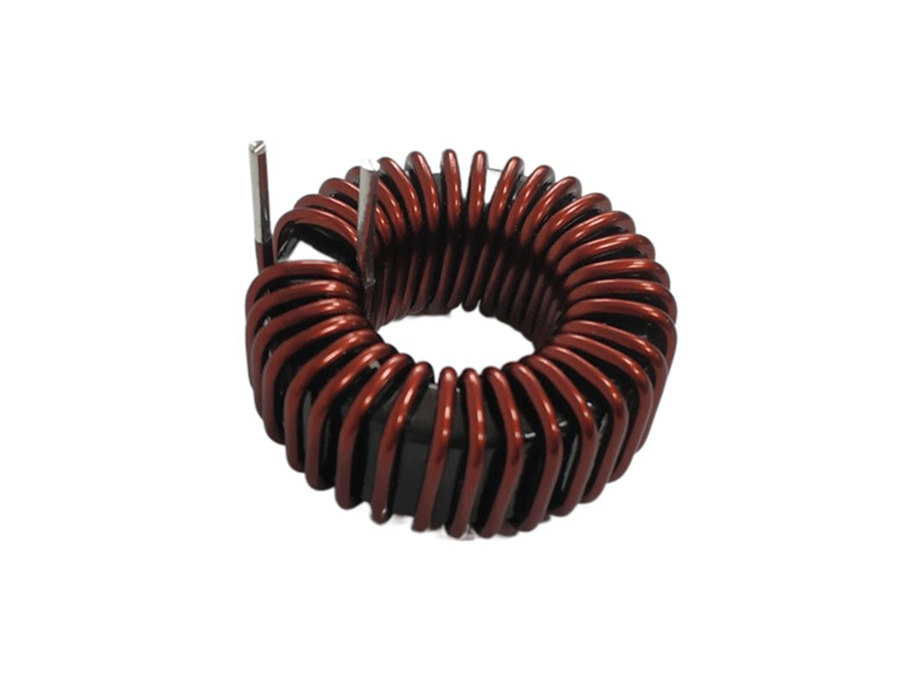

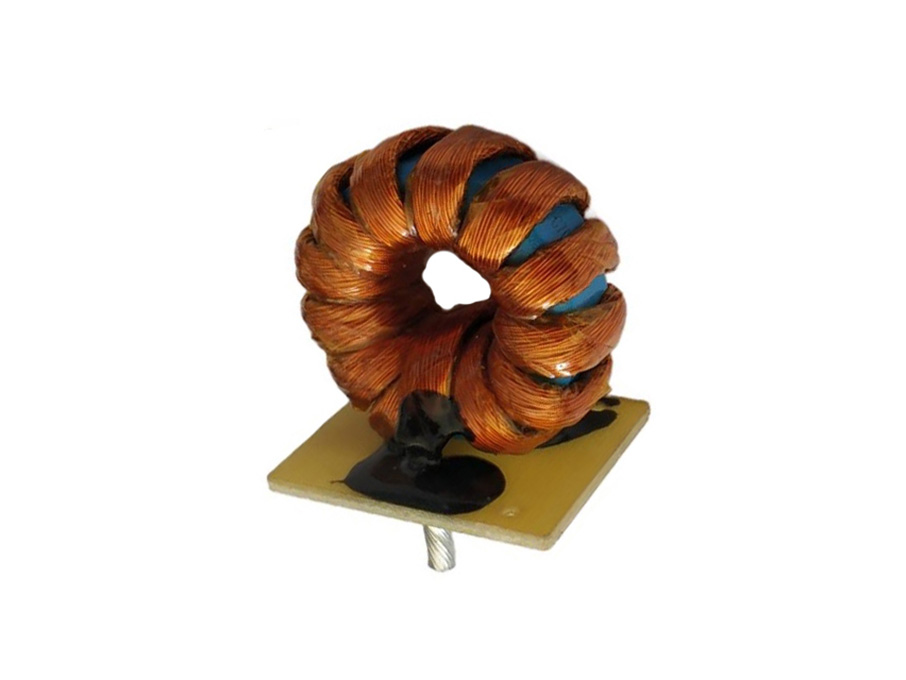

Toroidal Filter
1. Different range of frequency from 10kHz to 500kHz
2. Compact design, lighter weight with various material
3. High rated current and high inductance values with a compat design
4. Better frequency response due to a low number of turns
PRODUCT DESCRIPTION
Applications:
Power Supply
Switching Circuit
EMI/SCR/Triac Control
Standard:
Compliant with UL
Materials meet RoHS requirements
Specifications and parameters can be customized according to customer designed requirements.
Output toroidal filter is an important component in full bridge inverter. It always made by ferrite material and could connect with feedthru capacitor expediently. However, magnetic saturation will be happened during large current, then it will be reducted filtering performance.
