Design Considerations for High Frequency Transformers

High-frequency transformers are an essential component in many power electronics applications, including switching power supplies, inverters, and other power conversion circuits. They are used to transfer electrical energy from one circuit to another, with high efficiency and minimal loss. However, designing a high-frequency transformer can be a challenging task due to the unique characteristics of high-frequency power circuits. In this article, we will discuss some of the critical design considerations for high-frequency transformers.

Core Material Selection:

The selection of a suitable core material is one of the most important considerations in transformer design. The core material affects the efficiency, power handling capability, and size of the transformer. For high-frequency applications, the core material should have a high permeability, low core loss, and high saturation flux density. Some of the commonly used core materials for high-frequency transformers include ferrite, powdered iron, and laminated cores.

Winding Techniques:

The winding technique used in the transformer can have a significant impact on its performance. The winding technique should minimize the leakage inductance and reduce the inter-winding capacitance. The two primary winding techniques used in high-frequency transformers are the planar winding and the spiral winding. In the planar winding technique, the windings are placed in a plane perpendicular to the core, while in the spiral winding technique, the windings are wound around the core.

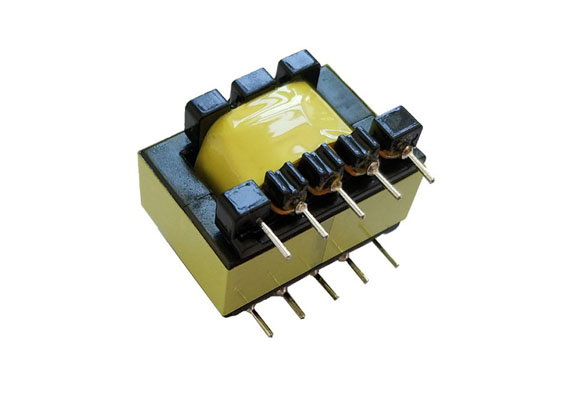

High-Frequency Transformer

Wire Selection:

The wire used in the transformer should have low resistance, low skin effect, and low proximity effect. The skin effect causes the current to flow mainly on the surface of the wire, resulting in higher resistance, and the proximity effect occurs due to the interaction between the current-carrying conductors, causing higher losses. Therefore, the wire should have a large surface area to minimize the skin effect, and the distance between the wires should be minimized to reduce the proximity effect.

Insulation:

The insulation used in the transformer should have high dielectric strength and low dielectric loss to minimize the losses and improve the efficiency. For high-frequency applications, the insulation should also have good thermal conductivity to dissipate the heat generated during operation. Commonly used insulating materials include Mylar, Kapton, Nomex, and Teflon.

Bobbin Design:

The bobbin is used to hold the windings and maintain the spacing between them. The bobbin should be made of a non-conductive material and should have a high melting point to withstand the high temperatures generated during operation. The bobbin should also have a low profile to minimize the size of the transformer.

Core Geometry:

The geometry of the core affects the performance of the transformer. The core should be designed to minimize the leakage inductance and reduce the winding capacitance. For high-frequency applications, the core should also be designed to minimize the core loss and reduce the flux leakage. The shape of the core can be customized to meet the specific requirements of the application.

Parasitic Capacitance:

The parasitic capacitance between the windings and the core can cause losses and reduce the efficiency of the transformer. The parasitic capacitance can be reduced by increasing the spacing between the windings and the core, using a low dielectric constant material for the insulation, and minimizing the area of the windings.

Magnetic Shielding:

The magnetic fields generated by the transformer can cause interference with other nearby circuits. Magnetic shielding can be used to reduce the magnetic field strength and minimize the interference. Magnetic shielding can be achieved by using a magnetic material around the transformer, such as Mu-metal or iron, or by using a shielded enclosure.
