Inductors are passive electronic components that store energy in a magnetic field. They are used in a wide range of electronic devices and circuits, such as filters, oscillators, transformers, and power supplies. Inductors are available in various types and designs, each with its own characteristics and advantages. In this article, we will discuss the most common types of inductors.
Air-core inductors have a core made of air, which means there is no magnetic material inside the inductor. This type of inductor is often used in high-frequency applications where low inductance values are required. Air-core inductors have low losses and high quality factors (Q factors), which make them ideal for resonant circuits and high-frequency filters.
Iron-core inductors have a core made of a ferromagnetic material such as iron, ferrite, or laminated iron. The core is usually a closed magnetic circuit that concentrates the magnetic flux and increases the inductance. Iron-core inductors are commonly used in power supplies, transformers, and low-frequency filters.
Ferrite-core inductors have a core made of a ferrite material, which is a type of ceramic that contains iron oxide. Ferrite cores have a high magnetic permeability, which allows for high inductance values in a small package size. Ferrite-core inductors are commonly used in high-frequency applications such as switching power supplies and RF circuits.

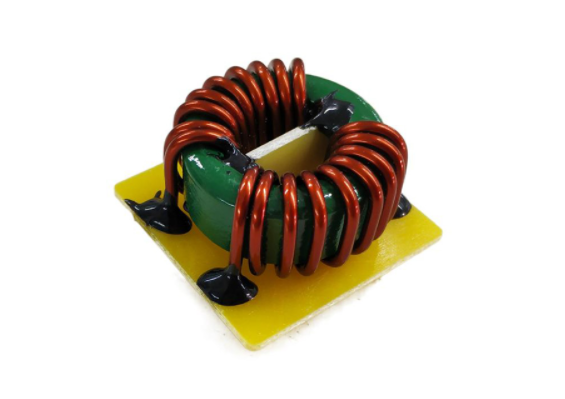

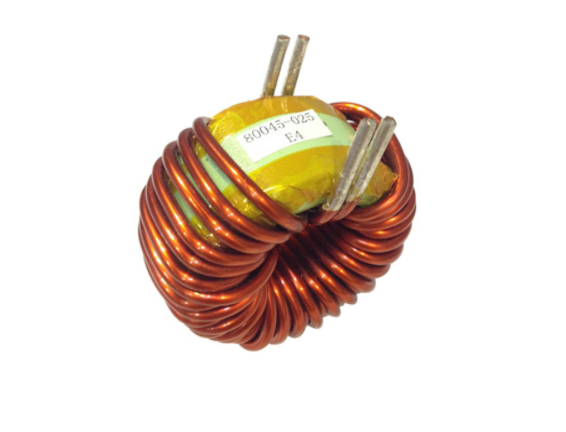

Toroidal inductors have a core that is a circular or donut-shaped ring, usually made of iron or ferrite. The wire is wound around the ring, which provides a high degree of magnetic coupling and low leakage inductance. Toroidal inductors are commonly used in power supplies, audio equipment, and RF circuits.
Solenoid inductors are the most basic type of inductor, consisting of a wire wound around a cylindrical or conical core. Solenoid inductors have a high self-inductance but also have high resistance and low Q factors. Solenoid inductors are commonly used in low-frequency applications such as audio filters and transformers.
Multilayer inductors are a type of surface mount inductor that consists of multiple layers of thin metal conductors. The layers are stacked on top of each other with a dielectric material between them, forming a compact package. Multilayer inductors have high inductance values and low DC resistance, which makes them ideal for high-frequency applications.
Chip inductors are a type of surface mount inductor that is designed for high-density circuit boards. They are small and lightweight, making them ideal for portable electronic devices. Chip inductors are available in a wide range of inductance values and sizes.
High-frequency inductors are designed for use in circuits with high frequencies, typically above 1 MHz. They are designed with low parasitic capacitance and high Q factors to minimize losses and maximize performance. High-frequency inductors are commonly used in RF circuits, filters, and oscillators.
Power inductors are designed to handle high currents and high power levels. They have a low DC resistance and are often designed with a ferrite core to increase the inductance. Power inductors are commonly used in power supplies, DC-DC converters, and motor control circuits.
