What Are the Advantages of Electronic Transformers?

An electronic transformer also known as a solid-state transformer, is a device that uses semiconductors, instead of magnetic cores, to transfer electrical energy from one circuit to another. It is a modern, compact, and efficient alternative to traditional magnetic transformers.

Electronic transformers use high-frequency switching techniques to convert the AC voltage from the power supply to a higher or lower voltage. These transformers are widely used in low-voltage lighting systems, such as LED lights and halogen lamps, to step down the voltage from 120 or 240 volts to 12 or 24 volts. Electronic transformers are also used in various other applications, including motor control, renewable energy systems, and power electronics.

One of the main advantages of electronic transformers is their high efficiency. Unlike magnetic transformers, which use an iron core to transfer energy between coils, electronic transformers use semiconductor devices, such as MOSFETs or IGBTs, to switch the voltage at high frequencies. This process results in less energy loss and higher efficiency, which means less energy is wasted as heat.

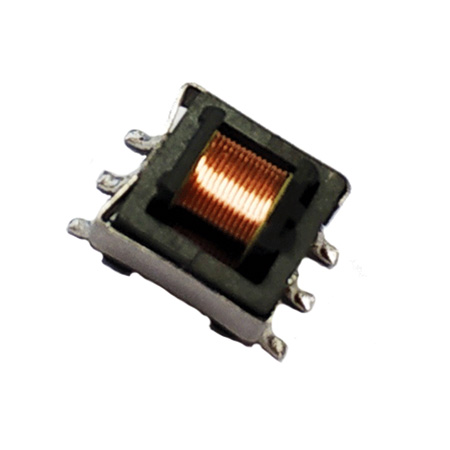

 Electronic Transformer

Another advantage of electronic transformers is their compact size and weight. Magnetic transformers require a large iron core to transfer energy between the primary and secondary coils, which makes them heavy and bulky. Electronic transformers, on the other hand, are much smaller and lighter, making them ideal for applications where space is limited.

Electronic transformers are also more flexible than magnetic transformers. They can be designed to operate at a wide range of frequencies and voltages, making them suitable for a variety of applications. For example, electronic transformers can be used in DC-DC converters to step up or step down the voltage, depending on the application requirements.

Despite their advantages, electronic transformers also have some disadvantages. One of the main limitations of electronic transformers is their sensitivity to voltage spikes and surges. These voltage spikes can damage the semiconductor devices in the transformer, which can result in premature failure. To address this issue, electronic transformers are often equipped with overvoltage and overcurrent protection circuits.

Another limitation of electronic transformers is their high harmonic content. The high-frequency switching techniques used in electronic transformers can result in harmonic distortion, which can cause interference with other electronic devices. To mitigate this issue, electronic transformers are often equipped with filtering circuits that reduce the harmonic content of the output voltage.

In summary, electronic transformers are modern and efficient alternatives to traditional magnetic transformers. They offer high efficiency, compact size, and flexibility, making them ideal for a variety of applications. However, electronic transformers are sensitive to voltage spikes and surges and can produce high harmonic content, which requires careful design and protection measures to ensure reliable operation.
