What is the Difference Between High and Low-frequency Transformers?

In the context of electrical engineering, "high-frequency" and "low-frequency" refer to the range of frequencies that a transformer is designed to operate at. A transformer is an electrical device that is used to transfer electrical energy from one circuit to another through electromagnetic induction. The primary winding of the transformer is connected to the source of the electrical current, and the secondary winding is connected to the load. The transformer works by inducing a voltage in the secondary winding through electromagnetic induction, which allows it to transfer electrical energy from the primary circuit to the secondary circuit.

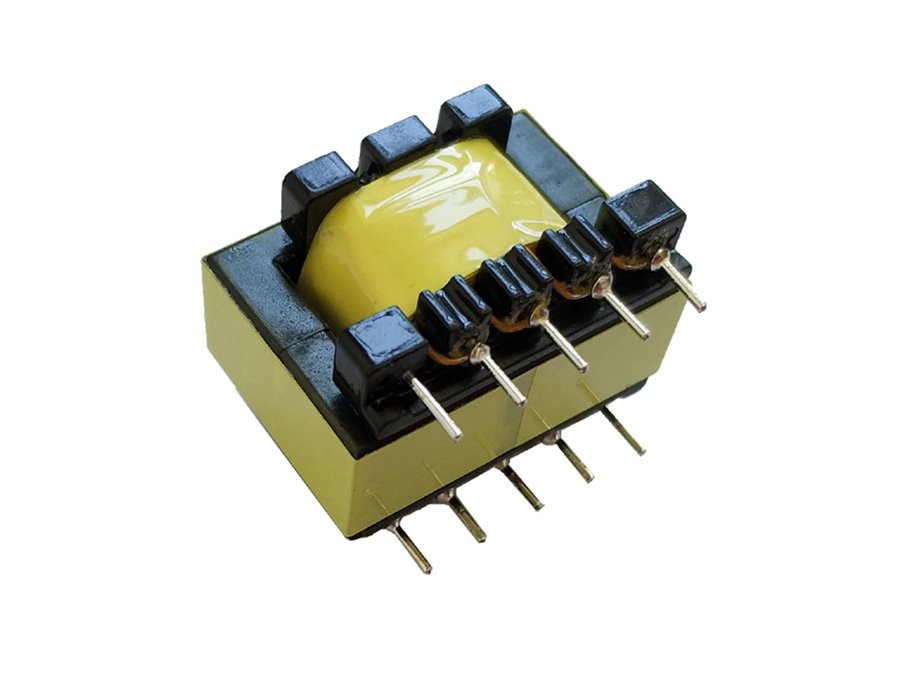

high-frequency transformer

The frequency of the electrical current refers to the number of cycles of the current per second. High-frequency transformers are those that are designed to operate with electrical currents that have a high frequency, typically in the range of tens of kilohertz to several megahertz. These types of transformers are typically used in high-frequency circuits, such as radio frequency (RF) and microwave circuits, as well as in power electronics applications.

A high-frequency transformer is one that is designed to operate at frequencies above a certain threshold, typically above a few kilohertz (kHz). High-frequency transformers are used in applications such as radio frequency (RF) and microwave transmission, where the signal being transmitted is at a high frequency.

On the other hand, a low-frequency transformer is one that is designed to operate at frequencies below a certain threshold, typically below a few hundred hertz (Hz). These types of transformers are typically used in power distribution systems and power transmission, where they are used to transform the voltage of the electrical current to a different level for transmission or distribution to the load.

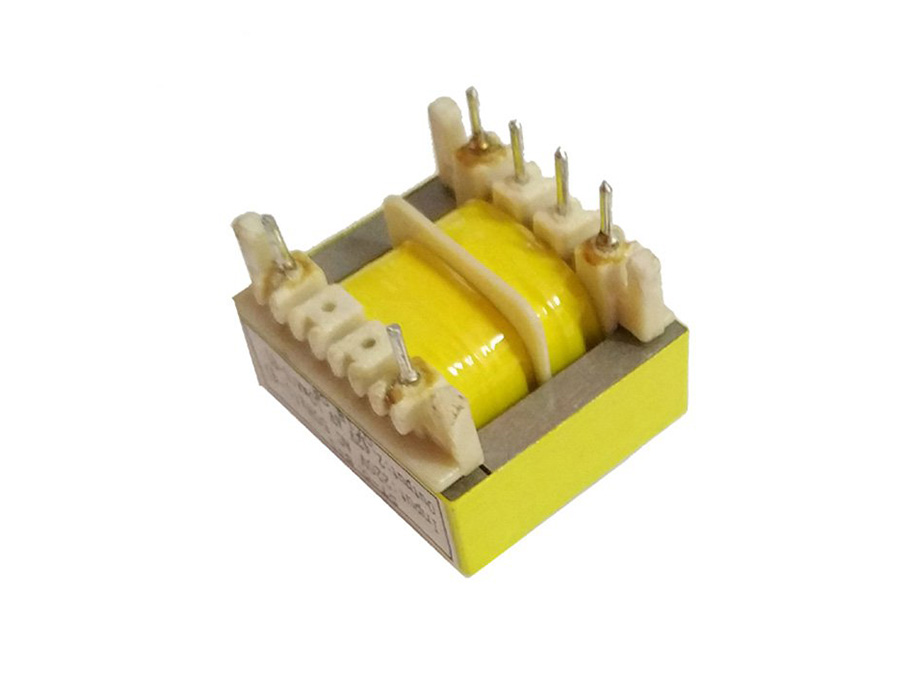

low-frequency transformer

In general, high-frequency transformers are smaller and lighter than low-frequency transformers because they can use smaller and lighter core materials due to the lower flux density in the core at higher frequencies. However, low-frequency transformers are generally more efficient and have lower losses than high-frequency transformers.

It is important to use the appropriate type of transformer for a given application, as the characteristics of the transformer, such as its inductance and capacitance, will vary depending on the operating frequency. Using a transformer that is not designed for the intended frequency can result in poor performance or even damage to the transformer or the equipment it is connected to.
