What Is the Efficiency of Toroidal Transformer?

A toroidal transformer is a type of transformer that uses a donut-shaped core made of a ferromagnetic material, such as iron, to transfer electrical energy from one circuit to another. The efficiency of a toroidal transformer refers to the percentage of electrical energy that is transferred from the primary winding to the secondary winding, without any significant losses due to factors such as heat or electromagnetic interference.

The efficiency of a toroidal transformer depends on a number of factors, including the quality of the core material, the size and number of windings, and the operating frequency of the transformer. In general, a well-designed and properly constructed toroidal transformer can achieve efficiency levels of 95% or higher, making them one of the most efficient types of transformers available.

One of the primary factors that contributes to the efficiency of a toroidal transformer is the quality of the core material. The core material should have a high magnetic permeability, which means that it can easily be magnetized by the electrical current flowing through the windings. The core material should also have a low magnetic hysteresis, which means that it can easily switch polarity with minimal energy loss. Materials such as iron, ferrite, and powdered iron are commonly used for toroidal transformer cores, as they have these desirable magnetic properties.

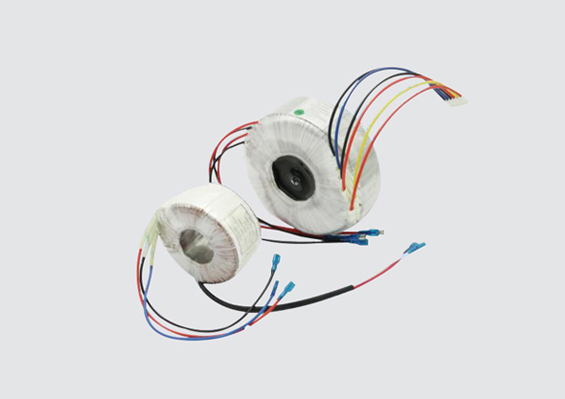

 Toroidal Transformer

The size and number of windings also play a role in the efficiency of a toroidal transformer. In general, a transformer with more windings will be more efficient, as it will be able to transfer more electrical energy from the primary to the secondary circuit. However, adding too many windings can lead to other issues, such as increased resistance and capacitance, which can cause losses due to heat or electromagnetic interference. The size of the windings is also important, as larger windings will generally have lower resistance and capacitance, and will therefore be more efficient.

The operating frequency of the transformer is another factor that can affect its efficiency. In general, toroidal transformers are designed to operate at specific frequencies, and will be most efficient within a certain range of frequencies. If the operating frequency is outside of this range, the transformer may experience increased losses due to factors such as skin effect or proximity effect, which can cause current to flow unevenly through the windings and result in energy loss.

Other factors that can affect the efficiency of a toroidal transformer include the quality of the insulation used between the windings, the temperature at which the transformer is operating, and the load impedance of the secondary circuit. In general, a well-insulated transformer that is operated within its designed temperature range and is matched to the load impedance of the secondary circuit will be more efficient than a poorly insulated transformer that is operated outside of its temperature range and is mismatched to the load impedance.

Overall, the efficiency of a toroidal transformer is determined by a complex interplay of factors, and can vary widely depending on the specific design and operating conditions of the transformer. However, with proper design and construction, toroidal transformers can achieve efficiency levels of 95% or higher.
