Why Use Encapsulated Transformers?

Encapsulated transformers, also known as resin-filled or potting transformers, offer several advantages in certain applications. Here are some reasons why encapsulated transformers are used:

• Protection from Environmental Factors: The encapsulation process involves filling the transformer's core and windings with a resin material, which forms a protective barrier. This encapsulation provides excellent protection against moisture, dust, dirt, and other environmental contaminants. It helps to extend the lifespan of the transformer by preventing damage and insulation degradation caused by external factors.

• Enhanced Safety: The resin encapsulation of the transformer provides electrical insulation and isolation, reducing the risk of electrical shock. It acts as a protective barrier between the live components of the transformer and the surrounding environment, minimizing the chance of accidental contact and improving overall safety.

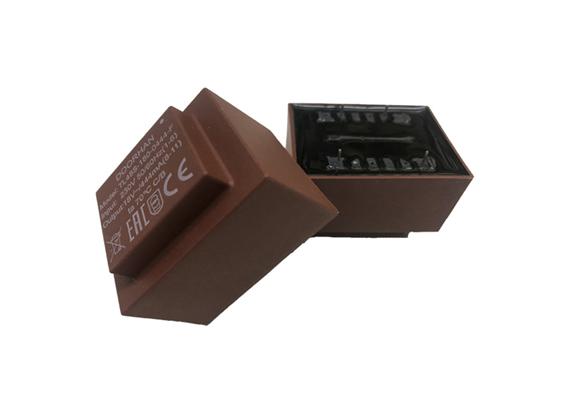

 Encapsulated Transformer

• Vibration and Shock Resistance: The solid resin encapsulation enhances the mechanical stability of the transformer. It helps to dampen vibrations and reduces the risk of damage from mechanical shocks or impacts. This makes encapsulated transformers suitable for applications where the transformer may be subjected to high levels of vibration or mechanical stress.

• Compact and Lightweight Design: Encapsulated transformers typically have a compact and lightweight design compared to traditional transformers with separate winding and insulation systems. This makes them easier to install and transport, especially in space-constrained applications.

• Noise Reduction: The resin-filled encapsulation helps to dampen the noise generated by the transformer's core and windings. This can be beneficial in noise-sensitive environments or applications where minimizing noise is desirable, such as in residential areas, offices, or hospitals.

• Resistance to Harsh Environments: Encapsulated transformers are well-suited for use in harsh or corrosive environments, including outdoor applications or locations with high humidity or chemical exposure. The resin material used in encapsulation provides excellent resistance to moisture, chemicals, and temperature variations, ensuring reliable performance even in challenging conditions.

• Improved Heat Dissipation: The resin-filled encapsulation can act as a heat sink, assisting in the dissipation of heat generated during transformer operation. This helps to maintain optimal operating temperatures and prevents overheating, thereby increasing the efficiency and reliability of the transformer.

It's important to note that encapsulated transformers may have certain limitations, such as limited flexibility for repair or rewinding compared to traditional transformers. Therefore, the decision to use an encapsulated transformer should consider the specific requirements of the application and the advantages it offers in terms of protection, safety, and performance.
