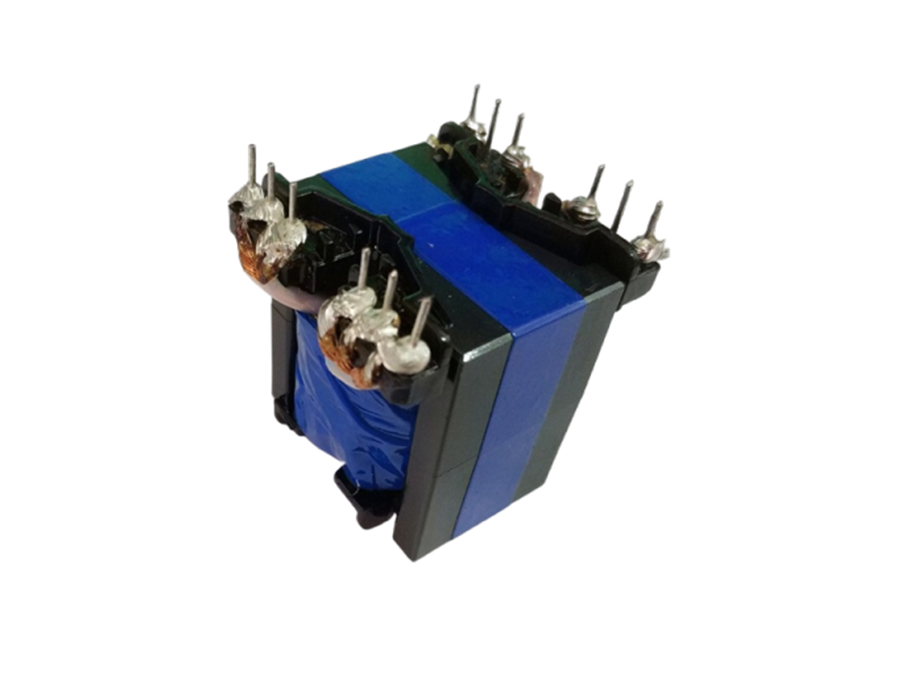

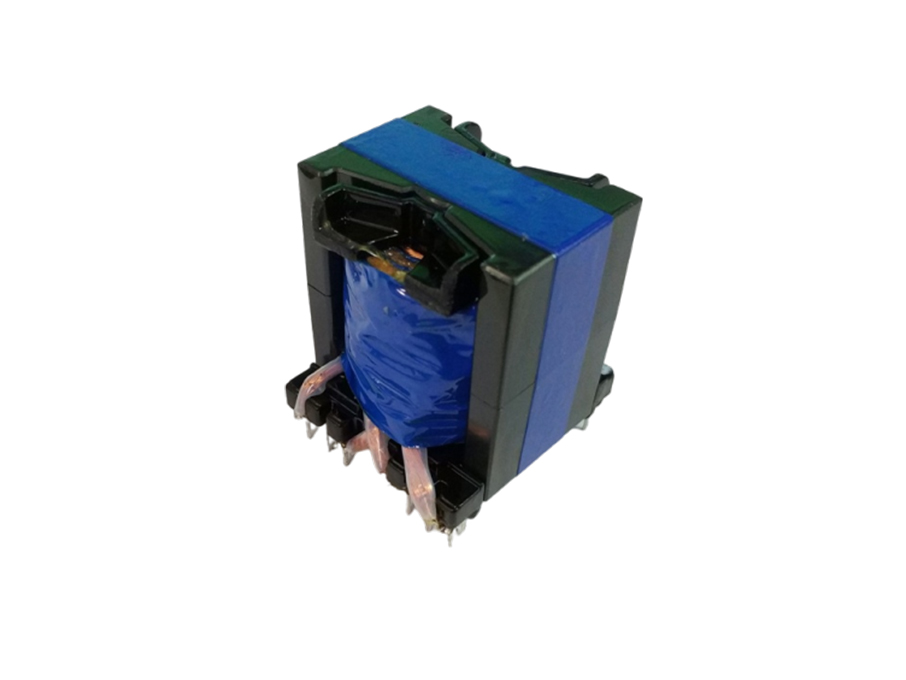

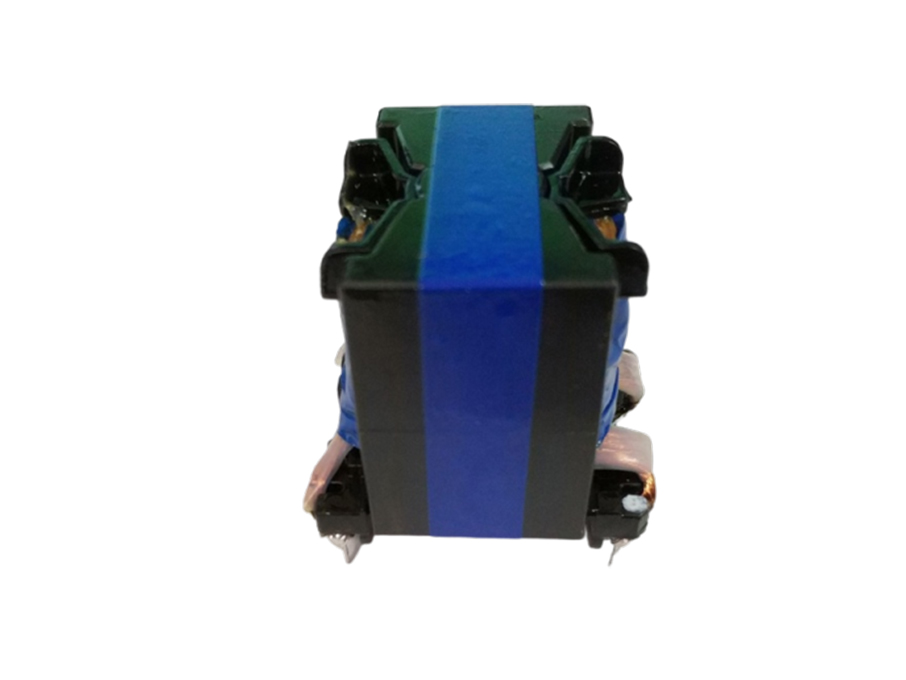

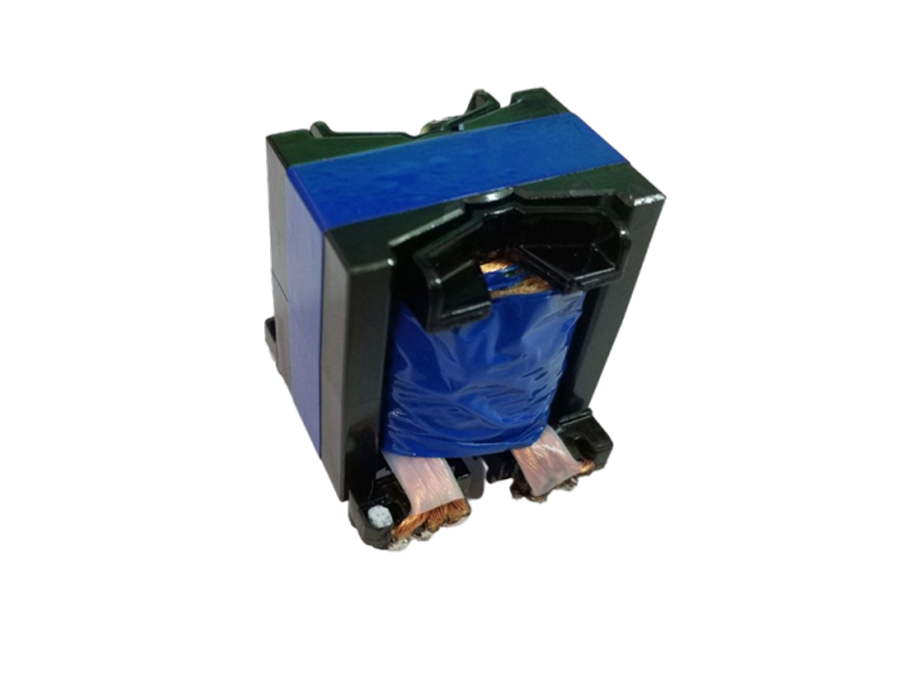

PQ3535 Transformer

High frequency transformer is a kind of electronic transformer which work frequency exceed 10 kHz, it widely used in switch power supply, inverter power supply, power meters, Telecom, inverter welding machine and photovoltaic, etc.

High frequency transformer as the most important parts in switch power supply, there are so many topological structure, such as full/half Bridge structure.

Sitong Electronic not only could manufacture forward half/full bridge transformer, also have other circuit transformers, such as flyback transformer, converter transformer, inverter transformer, push-pull transformer, LLC transformer, etc.

PQ3535 Transformer is a type of transformer that has a size of 35mm x 35mm, making it a compact and space-saving solution for various applications. This transformer is typically used in power electronics applications such as switch-mode power supplies, lighting systems, and motor drives.

The PQ3535 Transformer is designed to transform electrical energy from one circuit to another through electromagnetic induction. It is constructed with high-quality materials and advanced manufacturing processes to ensure reliable performance, energy efficiency, and safety. The PQ3535 Transformer is a popular choice for manufacturers looking for a high-performance transformer that is compact and versatile.

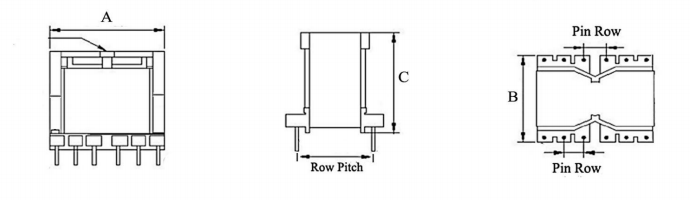

Specification

Application

The PQ3535 Transformer can be used in various applications that require a compact and efficient transformer with high power density. Some common applications of the PQ3535 Transformer include:
1. Switch-mode power supplies: The PQ3535 Transformer is often used in switch-mode power supplies, which are widely used in electronic devices such as computers, televisions, and mobile phones.
2. Lighting systems: The PQ3535 Transformer can be used in lighting systems such as LED drivers, which require a small, energy-efficient transformer.
3. Motor drives: The PQ3535 Transformer can be used in motor drives, which control the speed and torque of electric motors in various applications such as robotics, automation, and industrial machinery.
4. Renewable energy systems: The PQ3535 Transformer can be used in renewable energy systems such as wind turbines and solar inverters, which require high-performance transformers that can handle high levels of power.
5. Consumer electronics: The PQ3535 Transformer can be used in various consumer electronics devices such as audio amplifiers, power adapters, and chargers.
Overall, the PQ3535 Transformer is a versatile solution that can be used in various applications where a compact, energy-efficient, and reliable transformer is required.

Advantages

1.Our materials resource from the suppliers in our UL lists (UL E364966). They have passed RoHS or UL certificates. It is available for your pointed supplier. If there are any changes about the materials or suppliers, we will inform in advance.

2.Sitong Electronic has passed ISO9001:2015, our procedures according to the ISO requirements strictly. Our SOP is same as the customer’s requirements, and the batch goods is same as the delivered samples.

3.The goods will be inspected 2 times before delivery to ensure the best quality: All the products will through testing before varnish, and will be 100% tested before package. Twice testing including: turns, inductance, Hi-pot, leakage inductance, DCR, visual inspection, etc.

Features

Here are some features of the PQ3535 Transformer:

1. Compact size: The PQ3535 Transformer has a small footprint of 35mm x 35mm, making it ideal for use in tight spaces.

2. High power density: Despite its small size, the PQ3535 Transformer is capable of delivering high levels of power, making it suitable for a wide range of applications.

3. Energy efficiency: The PQ3535 Transformer is designed to minimize energy loss and maximize output, resulting in a more energy-efficient and cost-effective solution.

4. Reliable performance: The PQ3535 Transformer is constructed with high-quality materials and advanced manufacturing processes to ensure reliable and consistent performance.

5. Safety certifications: The PQ3535 Transformer has passed ISO9001:2015 quality and safety management system certification, and the materials used in its construction have passed RoHS testing. Additionally, it has CE and UL certificates, ensuring that it meets the highest standards for safety and performance.

6. Versatility: The PQ3535 Transformer is suitable for use in a wide range of applications, including switch-mode power supplies, lighting systems, and motor drives.

7. Customizable: The PQ3535 Transformer can be customized to meet the specific needs of customers, including voltage, current, and power ratings.

Welcome to Choose Our PQ3535 Transformer!

As a reputable PQ3535 Transformer supplier, Tianjin Sitong Electronic Co., Ltd. is proud to offer a high-quality transformer that is designed for use in a variety of applications. The PQ3535 Transformer is a compact and efficient solution that delivers reliable performance and long-lasting durability.

One of the key advantages of the PQ3535 Transformer is its compact size. Measuring just 35mm x 35mm, this transformer is ideal for use in tight spaces where size is a constraint. Despite its small footprint, the PQ3535 Transformer is capable of delivering high levels of power, making it suitable for a wide range of applications.

Another key benefit of the PQ3535 Transformer is its efficiency. This transformer is designed to minimize energy loss and maximize output, resulting in a more energy-efficient and cost-effective solution. By choosing the PQ3535 Transformer, customers can reduce their energy consumption and save money on their utility bills.

The PQ3535 Transformer is also designed with safety in mind. It has passed ISO9001:2015 quality and safety management system certification, and the materials used in its construction have passed RoHS testing. Additionally, the transformer has CE and UL certificates, ensuring that it meets the highest standards for safety and performance.

To ensure consistent quality and reliability, our workshop is equipped with automatic winding machines, automatic common mode inductor winding machines, and automatic epoxy potting machines. These advanced machines enable us to manufacture high-quality transformers that meet the needs of our customers.

In summary, the PQ3535 Transformer is a reliable and efficient solution that delivers high performance in a compact package. With its small size, energy efficiency, and safety certifications, it is an excellent choice for a wide range of applications. Contact us today to learn more about the PQ3535 Transformer and how it can benefit your business.
